How can I get playback to the headphones channel (1 or 2) instead of just the "main out" channels?

0 votes
1,320 views
asked Jan 30, 2016 in Studio 192 USB 3.0 Interfaces by micahgoldstein (150 points)
recategorized Feb 18, 2016 by AlexTinsley
I can hear playback by connecting my headphones to the "main out" channel, but not when the headphones are connected to headphone channel one or two.

I am using Logic Pro X version 10.2.0 on a Mac OS X El Capitan 10.11.1.

I am using the Studio 192 192kHz/24 bit, 26x32 USB 3.0

The answer is probably simple, but there is not much information on this.

1 Answer

0 votes
answered Feb 1, 2016 by mattcaprio (147,560 points)
selected May 5, 2016 by mattcaprio

Best answer

This is covered in the manual under the section about the front panel and "Headphones":

https://pae-web.presonusmusic.com/downloads/products/pdf/Studio192_OwnersManual_EN_01252016.pdf

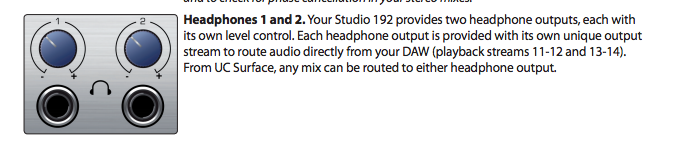

I've attached a link to a screenshot of the specific section:

http://answers.presonus.com/?qa=blob&qa_blobid=18348949914960201227

commented Feb 3, 2016 by mattcaprio (147,560 points)
Here's a direct quote from the manual:
"Each headphone output is provided with its own unique output stream to route audio directly from your DAW (playback streams 11-12 and 13-14)."

If you're using Logic then you need to route output to those playback streams.

If you do not know how to route output in Logic please see your reference manual for Logic.
...
